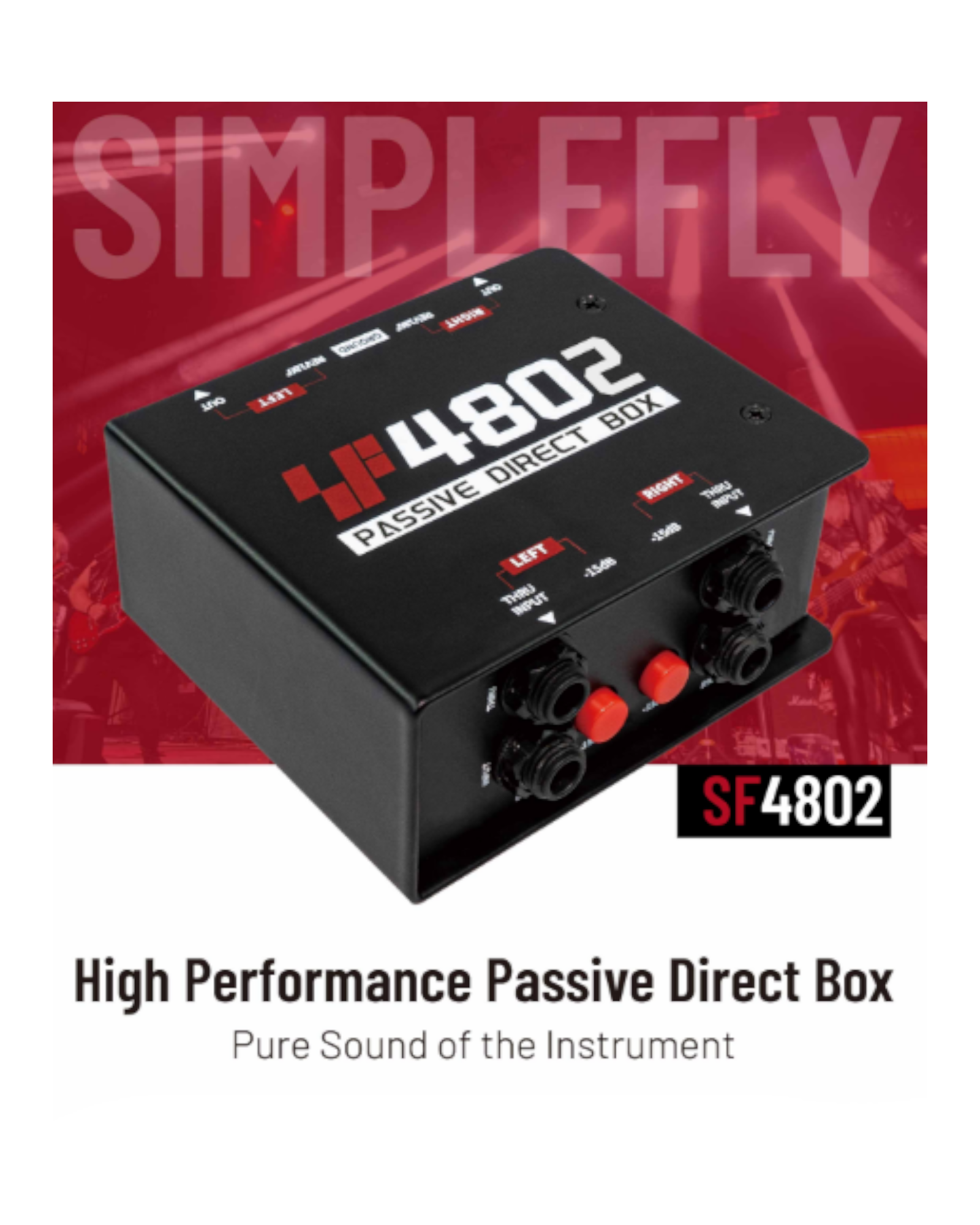

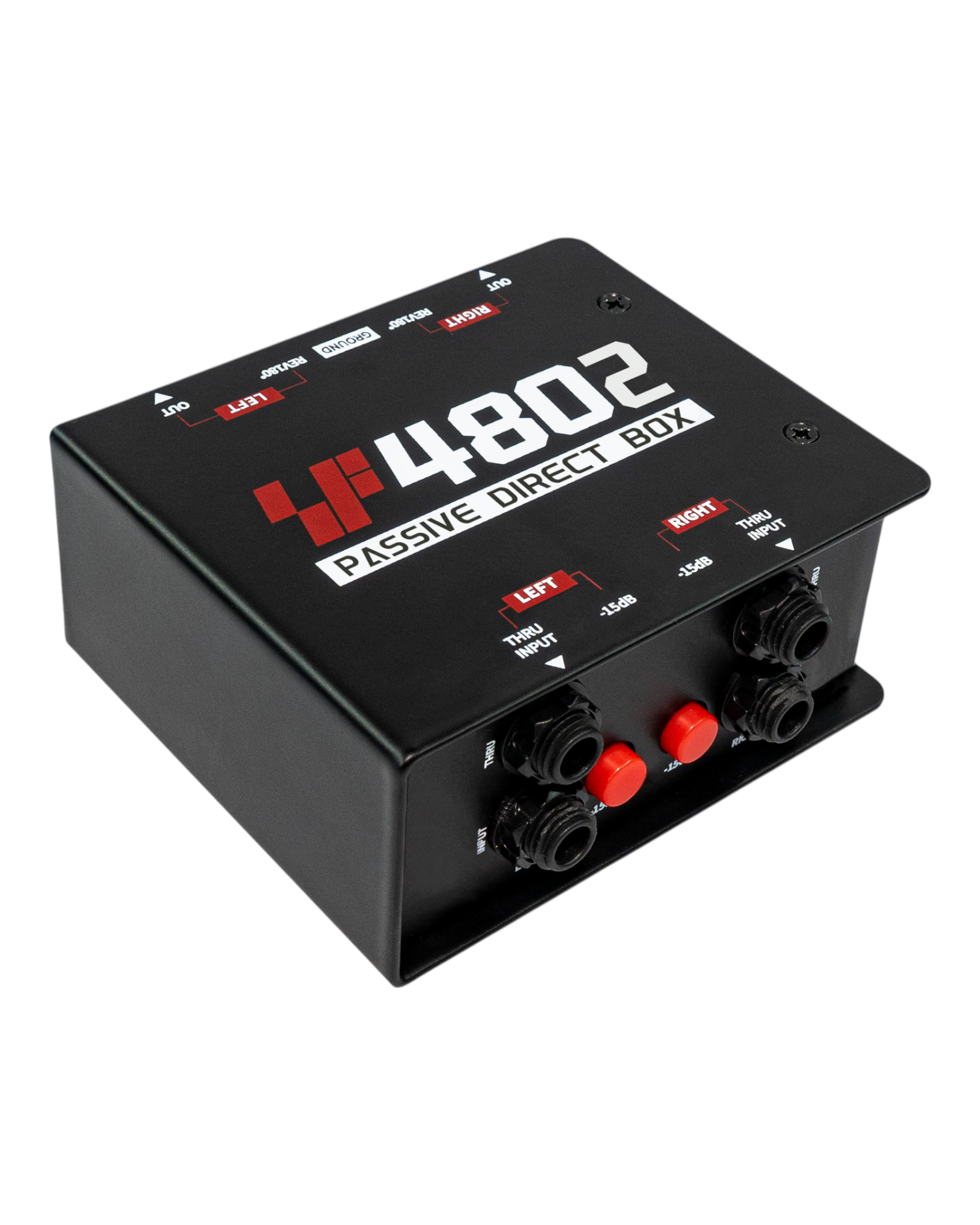

Simplefly SF4802 Passive Dual-Channel DI Box : Magnetic Bridge / 6.35mm to XLR Input / REV180° / Ground Lift Switch

Regular price $139.00
Sale price

Hurry! Only 5 left in stock!

Estimate delivery times: 3-6 days (Australia), 12-26 days (International).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Simplefly SF4802 Passive Dual-Channel DI Box : Magnetic Bridge / 6.35mm to XLR Input / REV180° / Ground Lift Switch
Simplefly SF4802 Passive Dual-Channel DI Box : Magnetic Bridge / 6.35mm to XLR Input / REV180° / Ground Lift Switch
Regular price $139.00
Sale price

The Simplefly SF4802 Passive Dual-Channel Magnetic Bridge DI Box is a high-performance, advanced device designed to convert high-impedance, unbalanced signals into low-impedance, balanced signals. Ideal for musicians, audio engineers, and performers, this passive DI box ensures clean, high-fidelity signal transmission with no distortion or noise.

Features

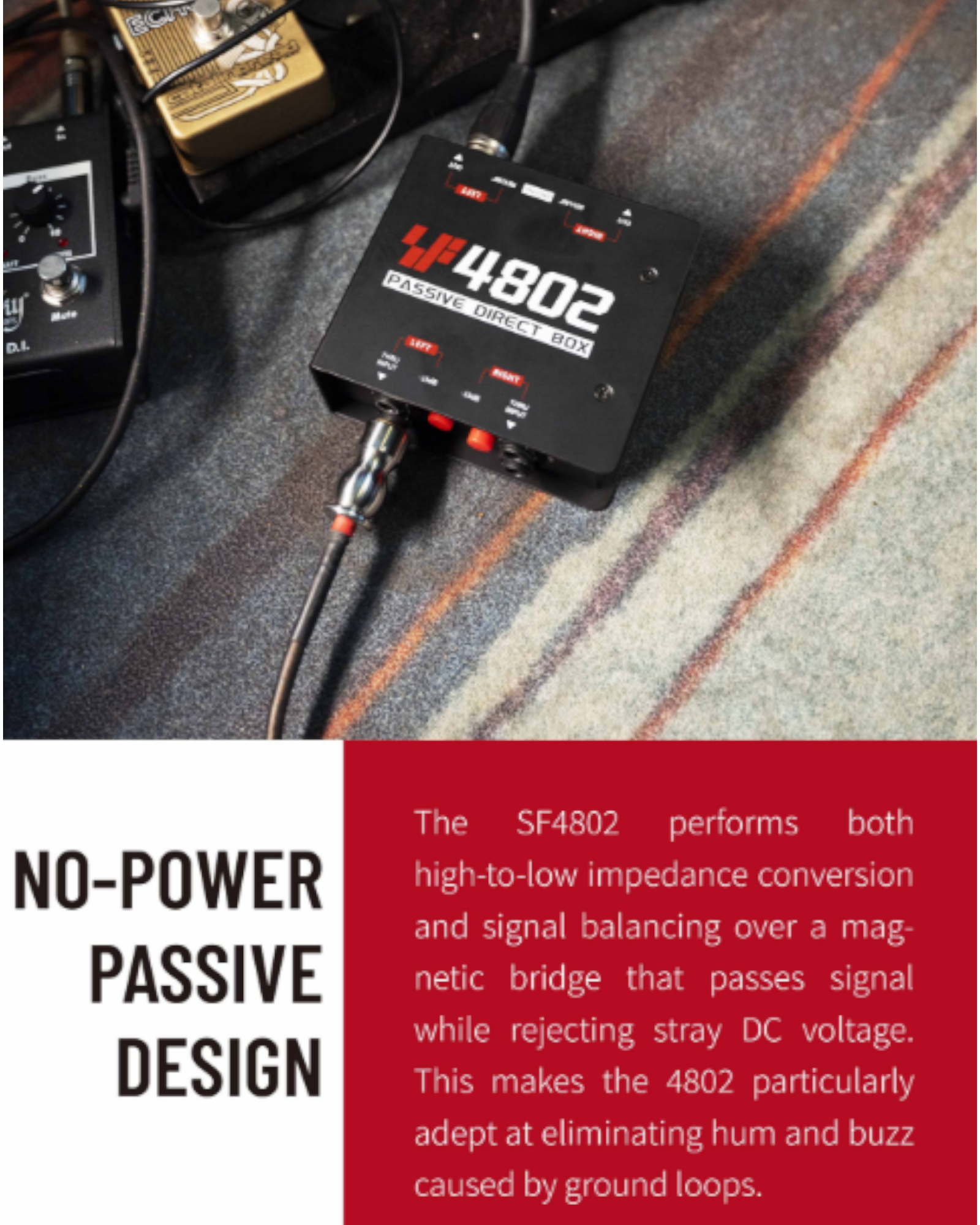

  • Magnetic Bridge Technology: Provides seamless high-to-low impedance conversion and superior signal balancing, while rejecting stray DC voltage. This technology helps eliminate hum and buzz caused by ground loops.

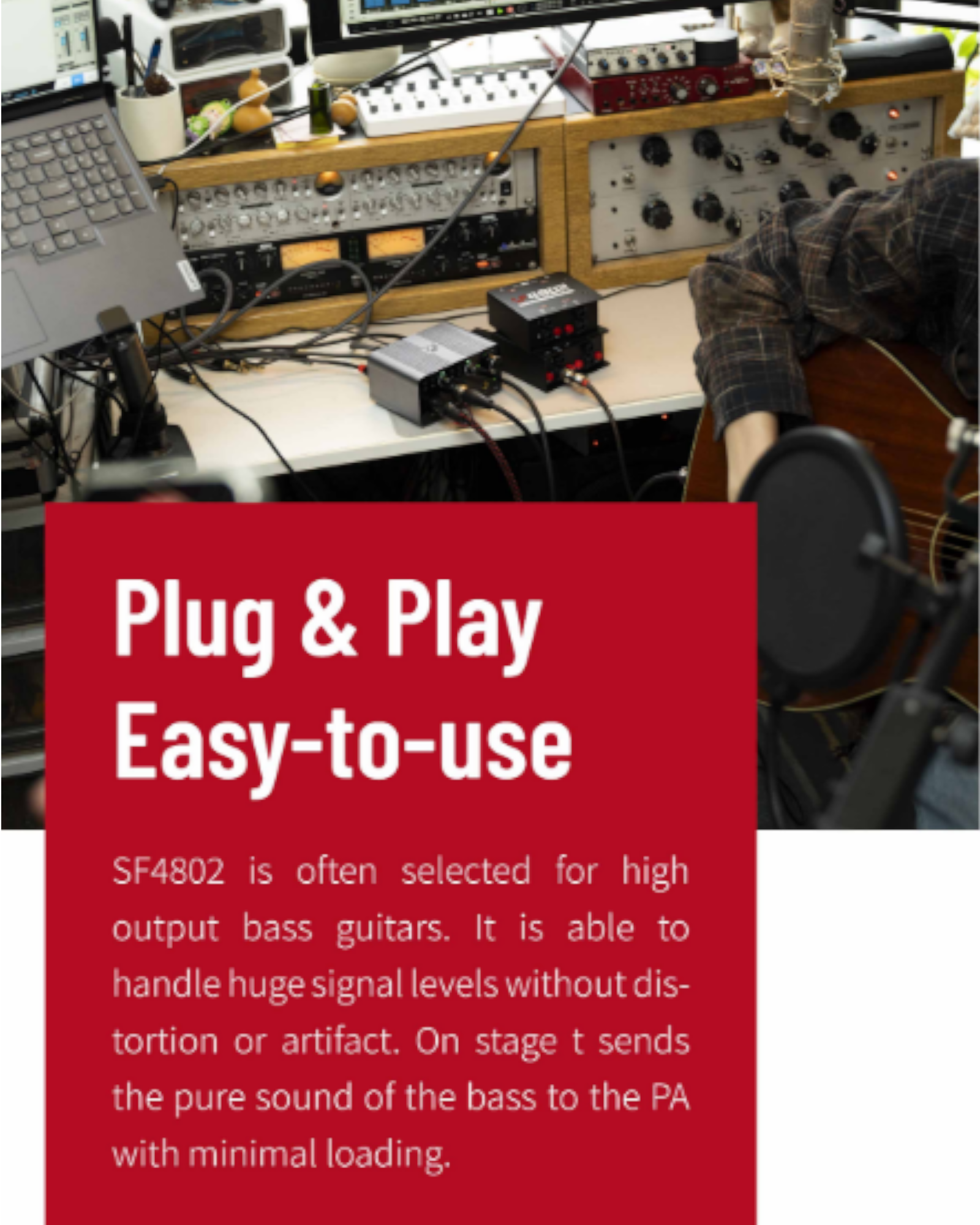

  • Designed for High Output Instruments: Perfectly suited for high-output bass guitars, it handles large signal levels effortlessly, delivering distortion-free sound transmission even on stage.

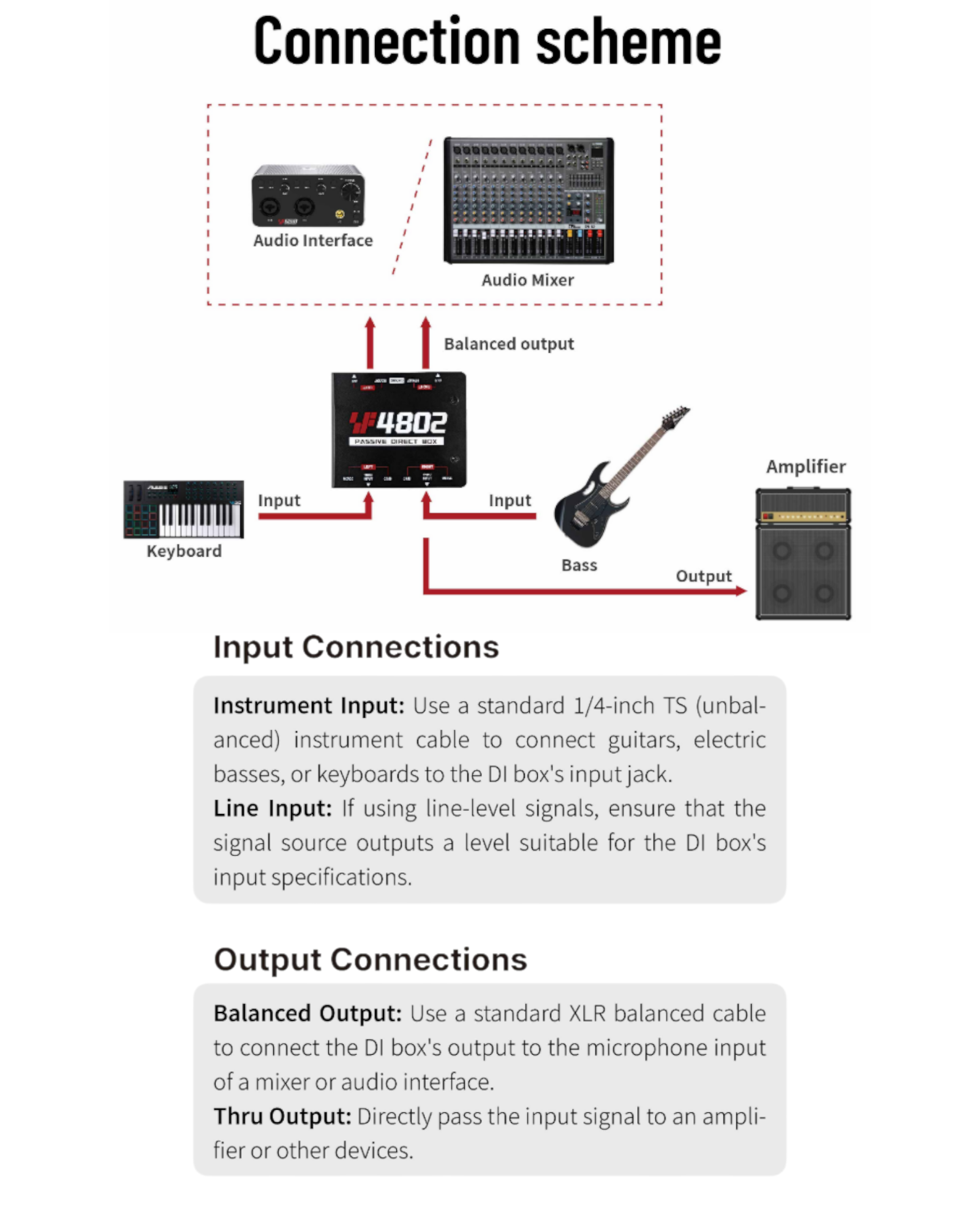

  • Dual-Channel Design: Offers versatile functionality, making it compatible with various audio equipment, including instruments and keyboards. It minimizes signal loss and noise during transmission.

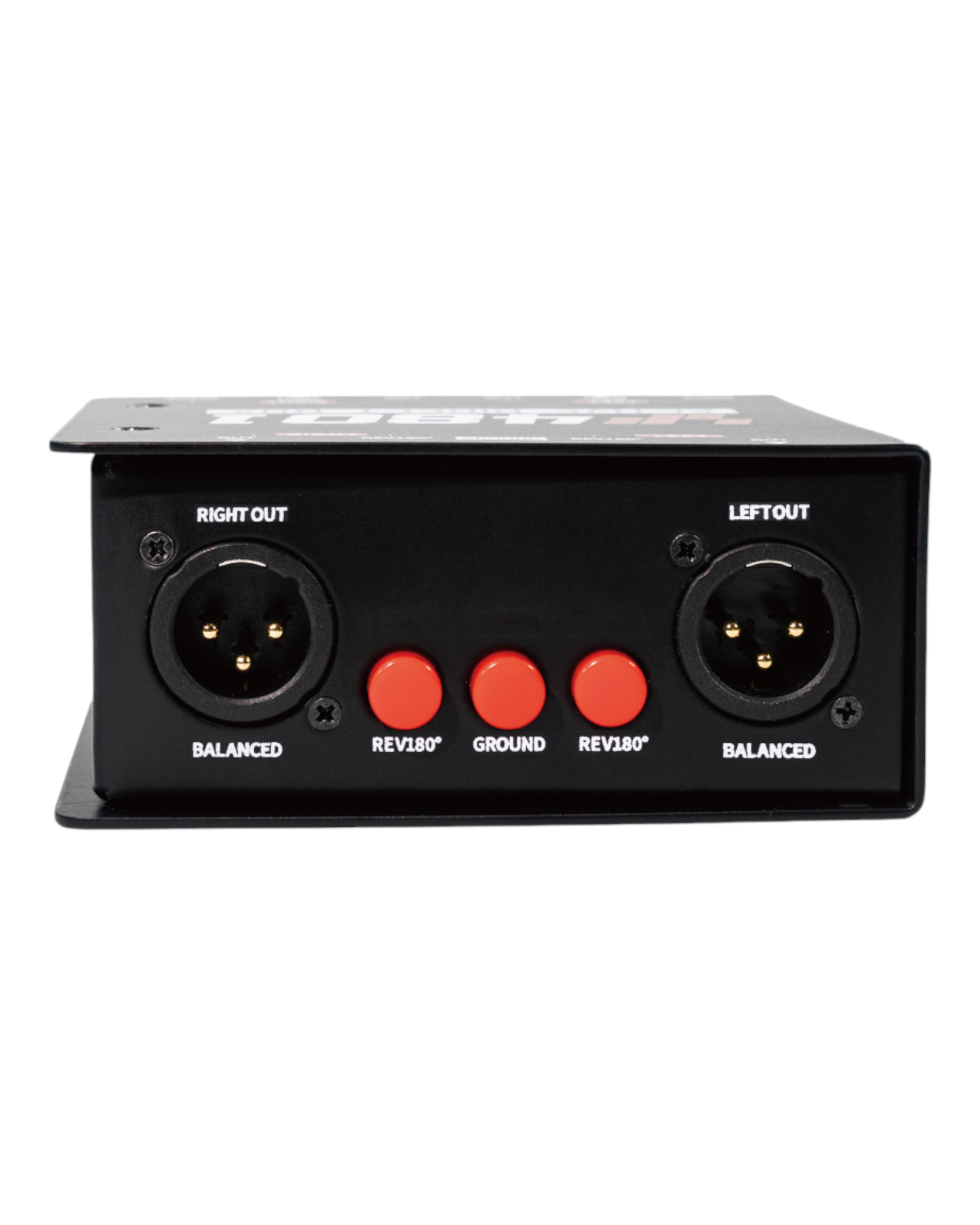

  • REV180° Switch: Reverses pins 2 and 3 of the XLR connector, making it ideal for connecting to older equipment or merging microphone and instrument signals into a single input to prevent phase cancellation.

This DI box is built to deliver reliable performance for both live performances and studio environments, maintaining pristine signal quality with minimal noise interference and loading.

Specifications

Model: SF4802

Noise: 24uVrms

SNR: 115dB

Distortion: 0.0005%

Harmonic Distortion: < 0.0007% (@1.8Vrms, 1kHZ)

Frequency Response: 20Hz ~ 20kHz (-3dB)

Maximum Input Level: +20dBu

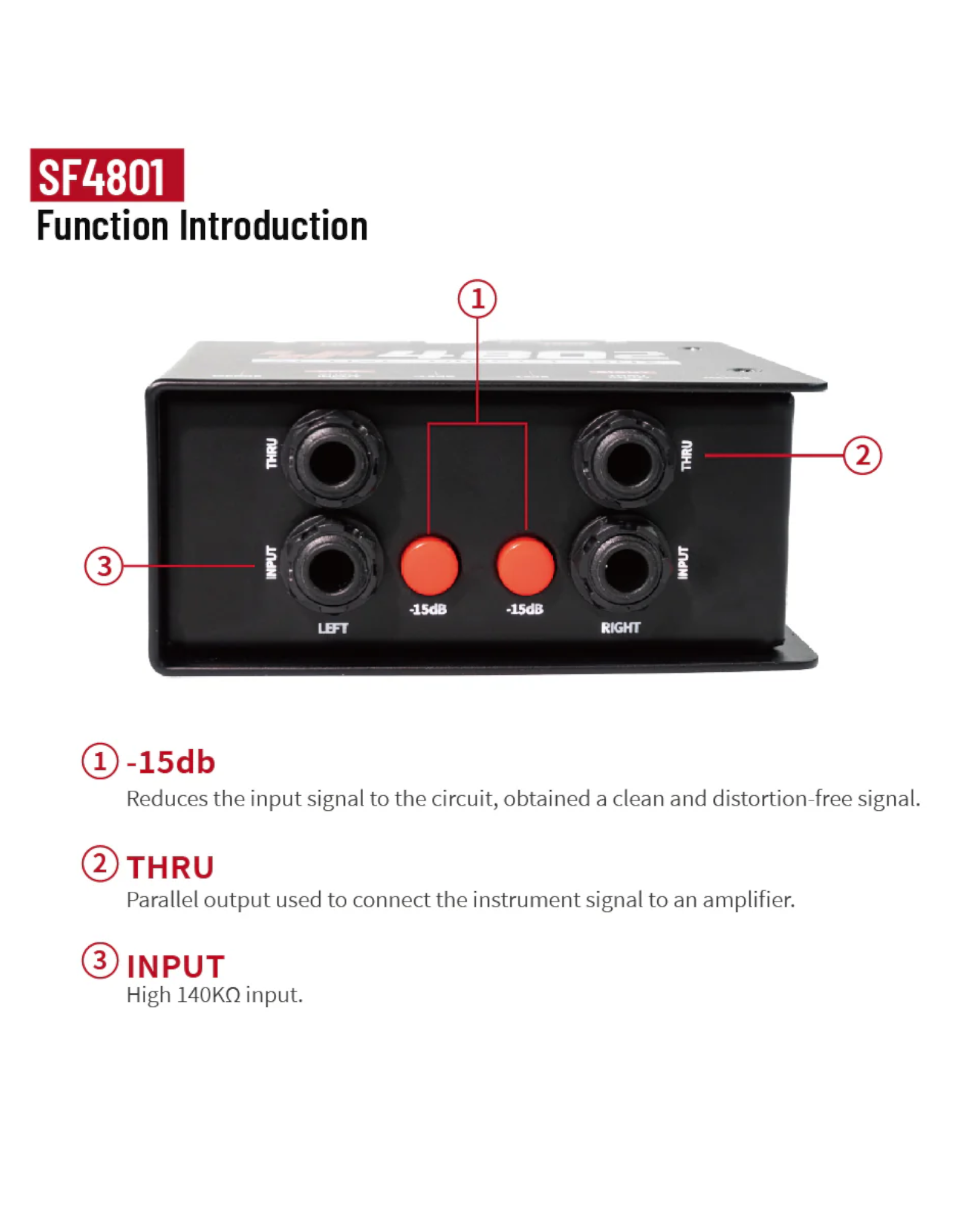

Input Impedance: 140KΩ

Ouput Impedance: 150Ω

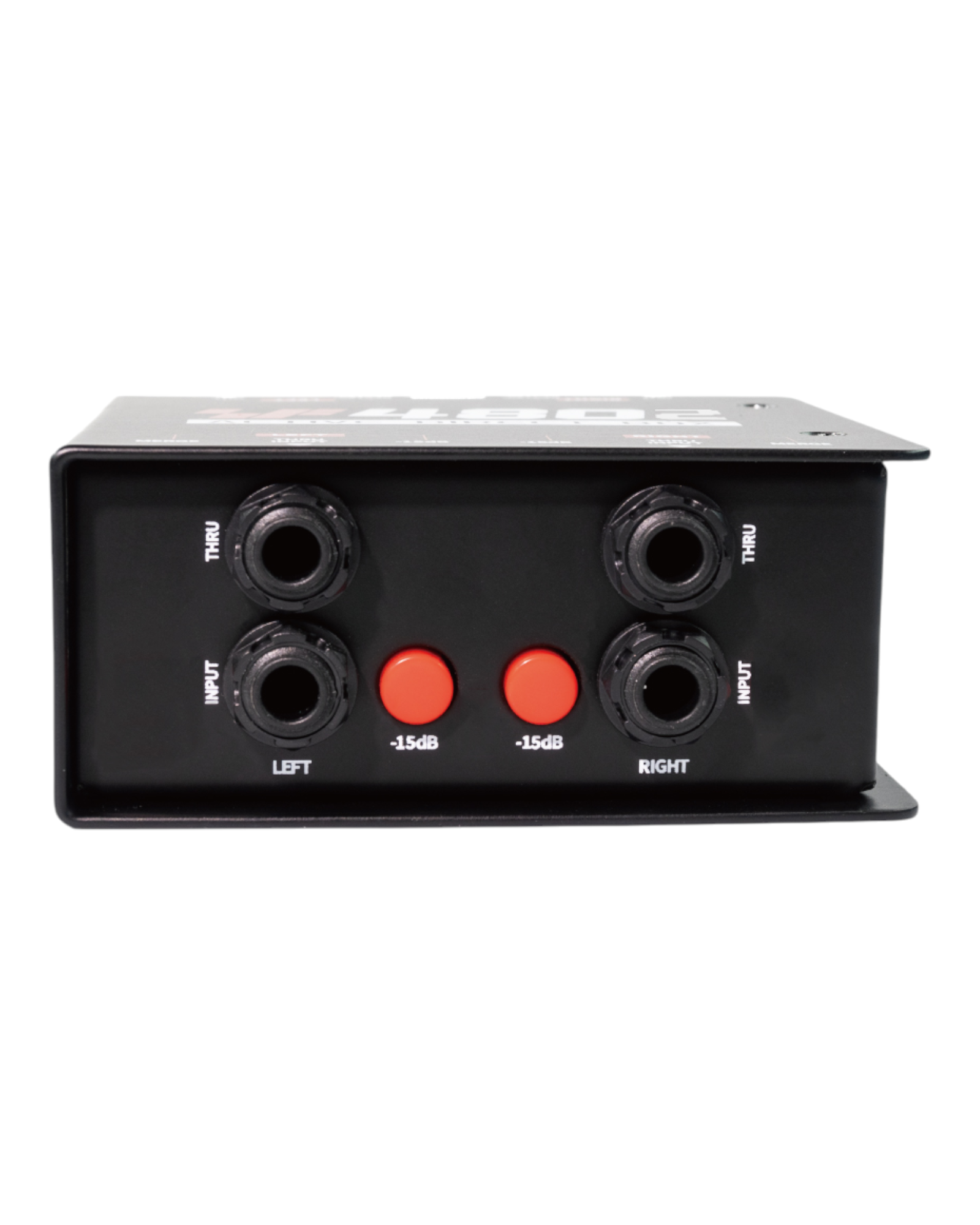

Input Connection: 6.35mm (mono)

Output Connection: XLR (balanced)

Power: Not Applicable (passive)

Dimensions: 105mm * 96mm * 46mm

Weight: 576g

Package Includes

1x  Simplefly SF4802 Passive DI Box

1 x User Manual

-
